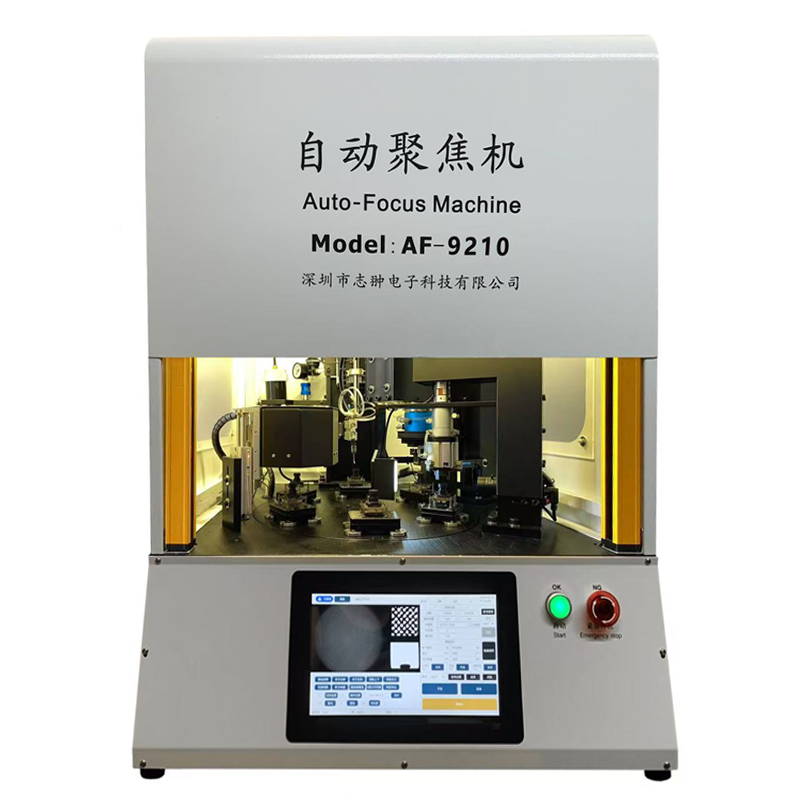

AF-9210自动聚焦机
AF-9210自动聚焦机
Auto focus machine
速度更快,精准调焦!
视觉侧拍预拧,电调式设置高度,Dual UV灯固化!
6工位大转盘介绍:取放料工位-预拧工位-聚焦工位-滴胶工位-UV固化工位(双位)。仅一人操控,可以完成三人工作!节拍时间5.5秒,每小时产650个。

1,新增视觉预扭工位,将镜头拧至焦点附近,镜头在IRCUT的位置不论高低都不影响自动聚焦的时间。

2,光学仪器内置4种光源,客户可自由设置光源,使适用图像传感器的范围更广。
调焦工位快速且精准,兼容多种模组,包括室内室外CCTV模组、车载模组、记录仪、低空拍摄模组、野外记录仪、婴儿看护类等等。

3,滴胶灵活- 自动滴胶可以1点、两点、、三点、四点等多角度点胶,也可以滴胶一圈。
且有电调方式控制高低。灵活气压设置胶水流量。胶水胶量低有警告提示!

4,8支大功率UV点光源固化,快速且能保证UV胶固化的品质!光源有电压监控及警告。

5,自由切换中/英双语操控界面。

6,模组类型参数可存档999个。

7,换线快-无需拧螺丝,快拆快装一键切换模组存档!

Introduction to the 6-station turntable: material pick-up and discharge workstation - pre-swrewing workstation - focusing workstation - glue drip workstation - UV solidification workstation (double position). Only one person can control it, and three people can complete the work! The beat time is 5.5 seconds, and the output is 650 per hour.

1. Add a visual pre-twisting station, twist the lens near the focus, and the position of the lens in IRCUT does not affect the time of automatic focusing.

2. The optical instrument has 4 built-in light sources, and customers can freely set the light sources to make the range of applicable image sensors wider.
The focusing position is fast and accurate, compatible with a variety of modules, including indoor and outdoor CCTV modules, car modules, recorders, low-altitude shooting modules, field recorders, baby care modules, etc.

3. Flexible glue drop - automatic glue drop can be 1 point, two point, three point, four point and other multi-angle dispensing, and can also drip glue in a circle.
And there is an electric adjustment method to control the height. Flexible air pressure to set the glue flow rate. There is a warning prompt for the low amount of glue!

4, 8 high-power UV point light sources curing, fast and can ensure the quality of UV glue curing! The light source has voltage monitoring and warning.

5. Freely switch the Chinese/English bilingual control interface.


6. 999 module type parameters can be archived.

7. Change the wire quickly - no need to screw, quick disassembly and quick in



Click on model comparison to view↑
点击型号对比进行查看↑
