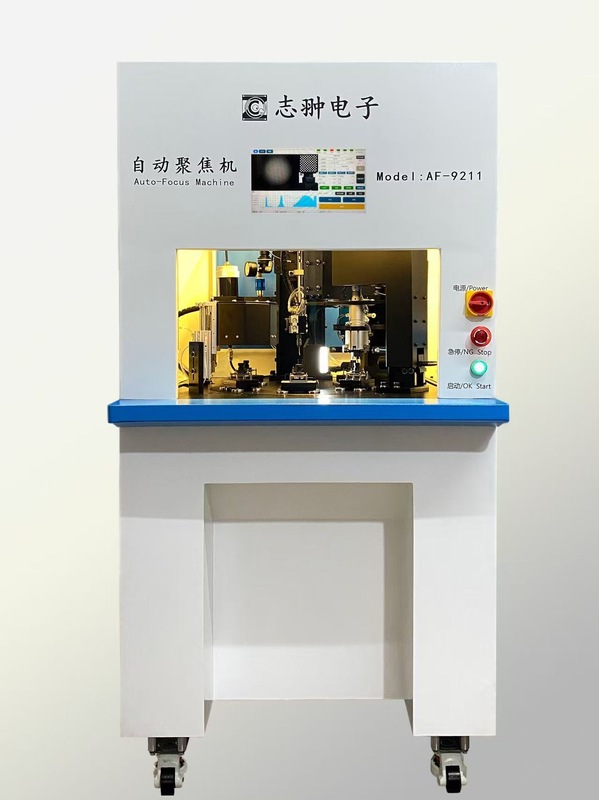

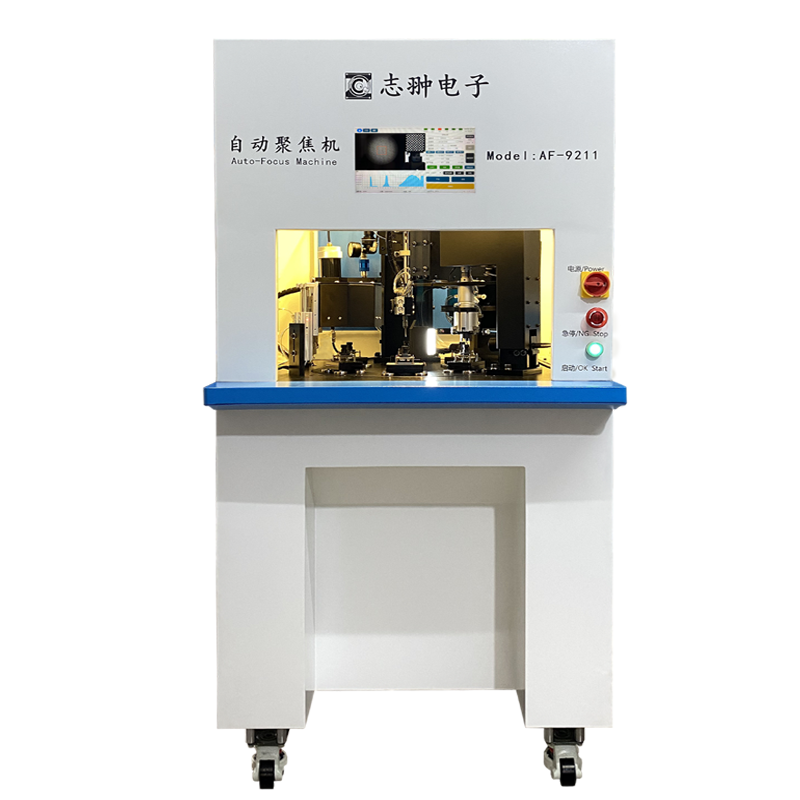

AF-9211自动聚焦机
AF-9211自动聚焦机
Auto focus machine
速度更快,精准调焦!电流检测
视觉侧拍预拧,电调式设置高度,Dual UV灯固化!
                   6工位大转盘介绍:取放料工位-预拧工位-聚焦工位-滴胶工位-UV固化工位(双位)。仅一人操控,可以完成三人工作!节拍时间5.5秒,每小时产650个。

1,新增视觉预扭工位,将镜头拧至焦点附近,镜头在IRCUT的位置不论高低都不影响自动聚焦的时间。

2,光学仪器内置4种光源,客户可自由设置光源,使适用图像传感器的范围更广。
调焦工位快速且精准,兼容多种模组,包括室内室外CCTV模组、车载模组、记录仪、低空拍摄模组、野外记录仪、婴儿看护类等等。

3,滴胶灵活- 自动滴胶可以1点、两点、、三点、四点等多角度点胶,也可以滴胶一圈。
且有电调方式控制高低。灵活气压设置胶水流量。胶水胶量低有警告提示!

4,8支大功率UV点光源固化,快速且能保证UV胶固化的品质!光源有电压监控及警告。

5,自由切换中/英双语操控界面。

6,模组类型参数可存档999个。

7,换线快-无需拧螺丝,快拆快装一键切换模组存档!


Introduction to the 6-station turntable: material pick-up and discharge workstation - pre-swrewing workstation - focusing workstation - glue drip workstation - UV solidification workstation (double position). Only one person can control it, and three people can complete the work! The beat time is 5.5 seconds, and the output is 650 per hour.

1. Add a visual pre-twisting station, twist the lens near the focus, and the position of the lens in IRCUT does not affect the time of automatic focusing.

2. The optical instrument has 4 built-in light sources, and customers can freely set the light sources to make the range of applicable image sensors wider.
The focusing position is fast and accurate, compatible with a variety of modules, including indoor and outdoor CCTV modules, car modules, recorders, low-altitude shooting modules, field recorders, baby care modules, etc.

3. Flexible glue drop - automatic glue drop can be 1 point, two point, three point, four point and other multi-angle dispensing, and can also drip glue in a circle.
And there is an electric adjustment method to control the height. Flexible air pressure to set the glue flow rate. There is a warning prompt for the low amount of glue!

4, 8 high-power UV point light sources curing, fast and can ensure the quality of UV glue curing! The light source has voltage monitoring and warning.

5. Freely switch the Chinese/English bilingual control interface.

6. 999 module type parameters can be archived.

7. Change the wire quickly - no need to screw, quick disassembly and quick in




点击型号对比进行查看↑

Click on model comparison to view↑
  AF-9210/9211自动聚焦机参数规格书
  序号 名称 参数及配置 备注
  1 外形尺寸  AF-9211:94*84*160CM  AF-9211:75*75*175CM
  2 重量 220kg
  3 电源 AC220V    50Hz
  4 功率 350W
  5 气压 4kg/c㎡
  6 控制方式 触摸屏+电控
  7 单个产品完成时间 5.5秒 每小时650台
  8 数控电机运动参数 8000
  9 扭力 500gf*cm
  10 CCD成像精度 0.002
  11 光学仪器放大倍数 150
  12 图像采集精度 1:1
  13 点胶方式 气压 单点2点3点4点两弧度一圈均可
  14 点胶类型 UV胶
  15 点胶量精度 0.01S
  16 固化方式 UV
  17 紫光灯类型 UV点光源
  18 紫光灯波长 365nm/395nm 客户可选365nm或者395nm
  19 紫光灯功率 4000mw/c㎡
  20 对镜头与镜头座之间扭力要求 200-500gf*cm
  21 完成四个工序 六工位大转盘。完成自动预拧镜头、自动聚焦、自动滴胶、自动固化四个工序。 独立视觉自动预拧工位,灵敏度比机械预拧快。不管镜头原来的位置是高是低,都会自动预拧到焦点附近,节省下一个自动聚焦工位的时间,提高效率。
